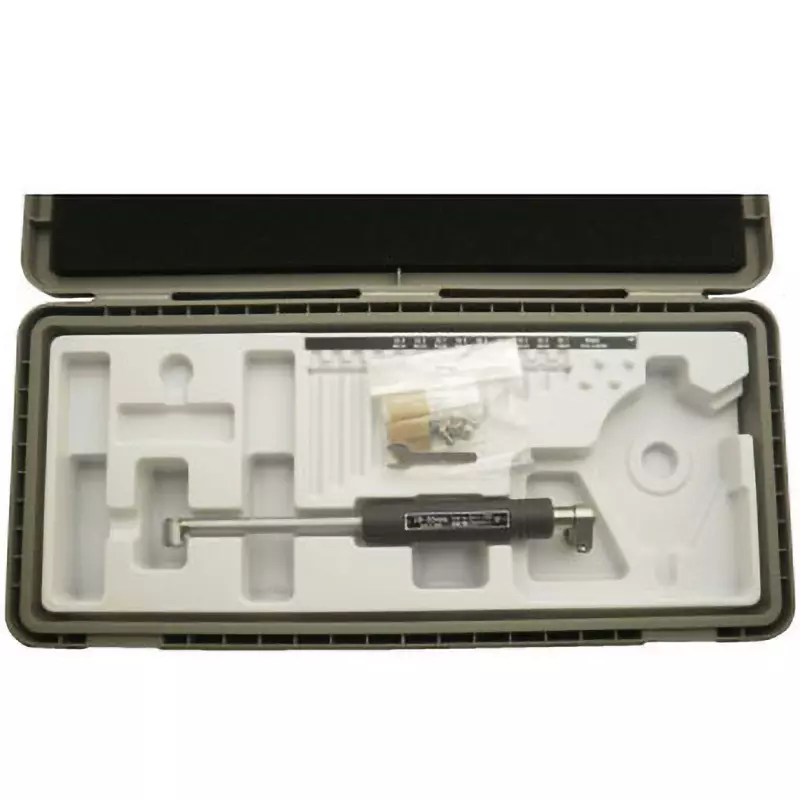

Name: Mitutoyo 511 Series Standard Cylinder Gauge - Natural Solaris Pvt. Ltd.
Availability: OutOfStock

Functional Attributes	CG-60AX	CG-150AX	CG-250AX
Model No	CG-60AX	CG-150AX	CG-250AX
Type of Product	Standard Cylinder Gauge	Standard Cylinder Gauge	Standard Cylinder Gauge
Measurement Range (mm)	35 to 60 mm	50 to 150 mm	160 to 250 mm
Wide Range Accuracy (μm)	5	5	5
Error	1 μm	1 μm	1 μm
Monotaro ID	35068616	35068625	35068643
Measuring Force (N)	4 N or less	5 N or less	6 N or less
Effective Stroke of Probe (mm)	1.2 mm	1.2 mm	1.2 mm
Repeatability (μm)	0.5 μm	0.5 μm	0.5 μm
Part No	511-702	511-703	511-705
Series	511	511	511
Accuracy (μm)	2 μm	2 μm	2 μm
RoHS Directive	Correspondence	Correspondence	Correspondence
Reference Type	Guide bearing capacity (N) 6 or less	Guide bearing capacity (N) 10 or less	Guide bearing capacity (N) 15 or less
Spare Washer (pieces)	4	4	7
Country of Origin	Japan	Japan	Japan
Import Country	Japan	Japan	Japan
Name of Manufacturer/Packer/Importer	Mitutoyo Corporation	Mitutoyo Corporation	Mitutoyo Corporation

i)Mitutoyo 35068616 – Application Measuring Instrument 3560 mm

This is a made in Japan product, imported directly from Japan.
Lead Time for Shiping will be 7-10 working Days

ii)Mitutoyo 35068625 – Application Measuring Instrument 50150 mm

This is a made in Japan product, imported directly from Japan.
Lead Time for Shiping will be 7-10 working Days

iii)Mitutoyo 35068643 – Dial Gauge Application Measuring Instrument 160250 mm

This is a made in Japan product, imported directly from Japan.
Lead Time for Shiping will be 7-10 working Days

Model No	"CG-60AX", "CG-150AX", "CG-250AX"
