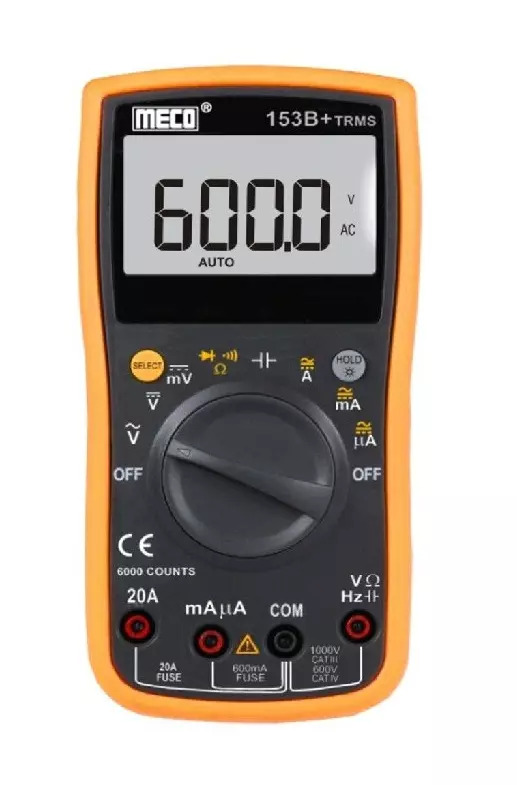

Meco Autoranging Digital Multimeter 750V 20A 3-5/6 Digits

Price range: ₹950.00 through ₹1,050.00

Type of Product Auto/Manual Ranging Digital Multimeter Autorange Multimeter
Model No 171B+TRMS 153B+TRMS
Counts 6000 6000
Country of Origin India India

Specification-

Type of Product Auto/Manual Ranging Digital Multimeter Autorange Multimeter
Model No 171B+TRMS 153B+TRMS
Counts 6000 6000
Country of Origin India India
Frequency Range (Hz) 99.99Hz-20.00MHz 99.99Hz-20.00MHz
Capacitance Range (F) 9.999/99.99/999.9nF/9.999/99.99/999.9 muF/9.999mF 9.999/99.99/999.9nF/ 9.999/99.99/999.9uF/ 9.999mF
Display 3 5/6 Digit 3 5/6 Digit
Current Accuracy (AC) +/-(1.5% rdg + 5 dgt) on 600/6000mA, +/-(2.0% rdg + 5 dgt) on 60/600mA, +/-(2.5% rdg + 5 dgt) on 6/20A +/-(1.5% rdg + 5 dgt) on 600/6000mA, +/-(2.0% rdg + 5 dgt) on 60/600mA, +/-(2.5% rdg + 5 dgt) on 6/20A
Current Range (AC) 600/6000muA/60/600mA/6/20A 600/6000?A/60/600mA/6/20A
Voltage Accuracy (DC) +/-(1.0% rdg + 4 dgt) on 600mV, +/-(0.5% rdg + 2 dgt) on 6/60/600V, +/-(7.0% rdg + 3 dgt) on 1000V +/-(1.0% rdg + 4 dgt) on 600mV, +/-(0.5% rdg + 2 dgt) on 6/60/600V, +/-(7.0% rdg + 3 dgt) on 1000V
Current Accuracy (DC) +/-(1.0% rdg + 2 dgt) on 600/6000 A, +/-(1.2% rdg + 3 dgt) on 60/600mA (+/-1.0% rdg + 2 dgt) on 600/6000?A (+/-1.2% rdg + 3 dgt) on 60/600mA (+/-1.5% rdg + 5 dgt) on 6/20A
Temperature Accuracy +/-(3.0% rdg + 4dgt) on 40 degree C ~ 0 degree C / -40 F ~ 32 F (1.0% rdg + 3dgt) on 0 degree C +/-(1.0% rdg + 5 dgt), +/-(1.2% rdg + 5 dgt) on 600mV, +/-(1.5% rdg+5 dgt) on 750V
Voltage Accuracy (AC) +/-(1.0% rdg + 5 dgt), +/-(1.2% rdg + 5 dgt) on 600mV, +/-(1.5% rdg+5 dgt) on 750V Test Leads (Pair), Holster, Battery (installed) & Instruction Manual
Resistance Accuracy +/-(1.2% rdg + 2 dgt) on 600Ohm & 6MOhm, +/-(1.0% rdg + 2 dgt) on 6/60/600kOhm, +/-(1.5% rdg + 2 dgt) on 60MOhm (+/-1.2% rdg + 2 dgt) on 600Ohm & 6MOhm (+/-1.0% rdg + 2 dgt) on 6/60/600kOhm (+/-1.5% rdg + 2 dgt) on 60MV
Battery Type Two 1.5V ‘AA’ Battery Two 1.5V ‘AA’ Battery
Capacitance Accuracy +/-(2.0% rdg + 4 dgt), +/-(3.0% rdg + 4 dgt) on 9.999mF +/-(2.0% rdg + 4 dgt), +/-(3.0% rdg + 4 dgt) on 9.999mF
Temperature Range (℃) 40-1000 Degree C
Voltage Range (AC) 600mV/6/60/600/750V 600mV/6/60/600/750V
Voltage Range (DC) 600mV/6/60/600/1000V 600mV/6/60/600/1000V
Resistance Range (Ohm) 600Ohm/6/60/600KOhm/6/60MOhm 600/6/60/600KOhm/6/60M
DC Current Range (Amps) 600/6000mA/60/600mA /6/20A 600/6000A/60/600mA/6/20A
Weight (g) 370 gm 370 gm
Dimension 180x90x52 mm 180x90x52 mm
Standard Accessories Test Leads (Pair), Holster, Battery (installed), Instruction Manual & K Type Thermocouple (upto 260 C) Test Leads (Pair), Holster, Battery (installed) And Instruction Manual
Frequency Accuracy +/-(0.05% rdg + 4 dgt), +/-(3.0% rdg + 4 dgt) on 9.999mF +/-(0.05% rdg + 4 dgt), +/-(3.0% rdg + 4 dgt) on 9.999mF
Name of Manufacturer/Packer/Importer Vikas Instruments Vikas Instruments

The Meco TRMS Autoranging Digital Multimeter is a versatile and indispensable tool for electrical testing, measurement, and troubleshooting tasks. Renowned for its accuracy, reliability, and user-friendly design, this multimeter is widely used by professionals and enthusiasts across various industries.Key features of the Meco TRMS Autoranging Digital Multimeter include:1. True RMS Measurement: The multimeter utilizes True RMS (Root Mean Square) measurement technology to accurately measure AC voltage, current, and other electrical parameters, even in the presence of distorted or non-linear waveforms. This ensures accurate readings under various operating conditions.2. Autoranging Function: The multimeter features autoranging capability, which automatically selects the appropriate measurement range based on the detected voltage or current level. This eliminates the need for manual range selection and ensures accurate measurements across a wide range of values.3. Measurement Range: The multimeter is capable of measuring voltages up to 750 volts (both AC and DC) and currents up to 20 amps. This wide measurement range makes it suitable for a variety of electrical testing and troubleshooting tasks in industrial, commercial, and residential settings.4. Digital Display: The multimeter is equipped with a clear and easy-to-read digital display that provides instant measurement readings. The display may also feature additional functions such as data hold, min-max recording, and backlighting for enhanced visibility in low-light conditions.5. Safety Features: The multimeter is designed with user safety in mind, featuring insulated probes and safety ratings that comply with industry standards for electrical testing equipment. This ensures safe and reliable operation during testing procedures.6. Portable and Durable Design: The multimeter is typically compact, lightweight, and ruggedly built for durability and portability. This makes it suitable for use in various environments, including field measurements and on-site troubleshooting.Overall, the Meco TRMS Autoranging Digital Multimeter is a reliable and efficient tool for electrical testing and measurement tasks. Its True RMS measurement capability, autoranging function, wide measurement range, digital display, safety features, and portable design make it an indispensable asset for professionals seeking to maintain the integrity, efficiency, and reliability of electrical installations across various industries and applications.
